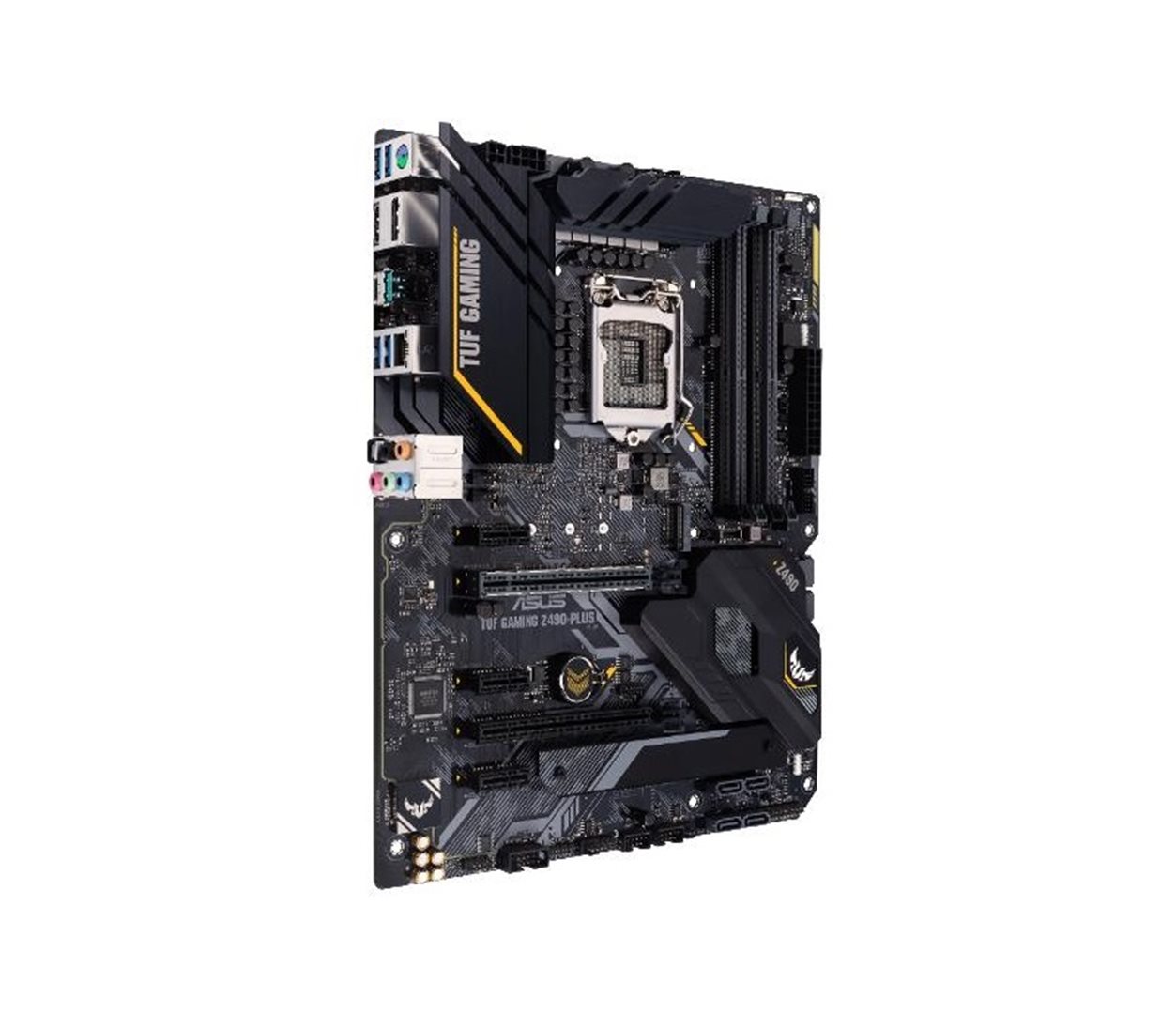

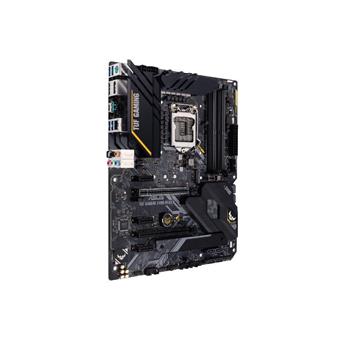

ASUS TUF GAMING Z490-PLUS

Chipset: Intel® Z490

Rozměrový formát: ATX Form Factor (305 mm x 244 mm)
Podpora pro procesory: Intel® Socket 1200 for 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
Patice procesoru: LGA 1200

Pozice na paměti: 4x DDR4 DIMM
Podpora pro paměti: 4800(O.C.)/4600(O.C)/4500(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory
Max.velikost operační paměti: 128 GB
Podpora pro paměti typu: DDR4 (Dual Channel)

• Intel® Extreme Memory Profile (XMP)

Grafická karta: Integrated Graphics Processor (na základě CPU)

Multi GPU:

• AMD 2-Way CrossFireX Technology

Zvuková karta:

• Realtek® ALC S1200A 7.1 Surround Sound High Definition Audio CODEC

Síťová karta:

• Intel® I219-V 1Gb Ethernet (TUF LANGuard)

Rozšiřující sloty:

• 1x PCIe 3.0 x16 (x16 mode)
• 1x PCIe 3.0 x16 (x4 mode)
• 3x PCIe x1

RAID řadič: 0, 1, 5, 10

SATA:

• 6x SATA 6Gb/s port(s)

M.2:

• 1 x M.2_1 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
• 1 x M.2_2 socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)

USB:

• zadní USB porty ( celkem 6 )
• 2x USB 3.2 Gen 2 port(s)(1 + Type-A +1 + USB Type-C®)
• 4x USB 3.2 Gen 1 port(s)(4 x Type-A)
• přední USB porty ( celkem 7 )
• 1x USB 3.2 Gen 2 front panel connector port(s)(1 x USB Type-C®)
• 1x USB 3.2 Gen 1 port(s)(2 x Type-A)
• 2x USB 2.0 port(s)(4 x Type-A)

Interní porty:

• 1x CPU Fan connector(s)
• 1x CPU OPT Fan connector(s)
• 3x Chassis Fan connector(s)
• 1x AIO_PUMP connector
• 2x Aura RGB Strip Headers
• 1x Addressable Gen 2 header(s)
• 1x USB 3.2 Gen2 connector support additional 1 USB ports(20-pin, Type-C)
• 1x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
• 2x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
• 2x M.2 Socket 3
• 6x SATA 6Gb/s connector(s)
• 1x Thunderbolt header(s)
• 1x 24-pin EATX Power connector(s)
• 1x 8-pin ATX 12V Power connector(s)
• 1x 4-pin ATX 12V Power connector(s)
• 1x Front panel audio connector(s) (AAFP)
• 1x System panel(s) (Chassis intrusion header is inbuilt)
• 1x Clear CMOS jumper(s)
• 1x COM port header

Externí porty:

• 1x PS/2 keyboard/mouse combo port(s)
• 1x DisplayPort
• 1x HDMI
• 1x LAN (RJ45) port(s)
• 2x USB 3.2 Gen 2 (1 x Type-A+1 x USB Type-C®)
• 4x USB 3.2 Gen 1 (blue) Type-A
• 1x Optical S/PDIF out
• 5x Audio jack(s)

Obsah balení:

• Uživatelská příručka
• 1x ASUS Fan Holder
• I/O Shield
• 2x SATA 6Gb/s cable(s)
• 1x M.2 Screw Package
• 1x Supporting DVD
• 1x TUF GAMING Sticker
• 1x TUF Certification card(s)

BIOS: 192 (128+64) Mb Flash ROM, UEFI AMI BIOS

Stránka výrobce: https://www.asus.com/Motherboards/TUF-GAMING-Z490-PLUS/
